ANCHOR BOLTES

An Anchor Bolt is used to attach objects or structures to concrete. There are many types of Anchor Bolts all consist of thread end, to which a nut and washer is attached for the external load. Anchor Bolts are extensively used on all types of projects, from standard building to dams, bridges, road, power plants etc. Type of Anchor Bolts we manufacture

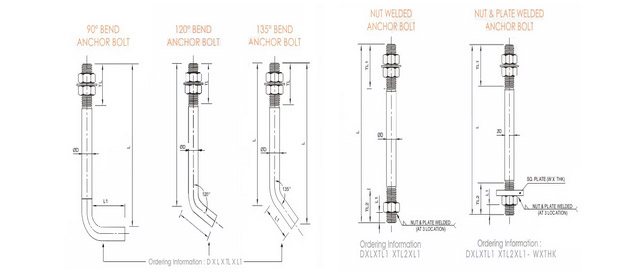

Straight Anchor Bolt one end threaded or both end threaded.
J-Type Anchor bolt.
Nut welded Anchor Bolts.
L-Type Anchor Bolt 90?,120?,135?
Chemical Anchor also full threaded Stud with one end having 45? cutting
Size

Nom Dia: 1" to 4" [M12-M100] *Tailor made if require

Length: As Per Standard or Upto any Length

Specifisation / Standard

ASTM / ASME / BS / DIN / BS EN ISO

Material

C.S., M.S., Alloy Steel, Ferritic & Austenitic Stainless Steel

Threades

UNC, 8UN, UNF, Metric Coarse & Fine Series

Surface Finish

Self Color, Hot Dip Galvanized, Electro Galvanized, or any other as per order requirement
